\(QS27_{2}^{(1)}\)
Description

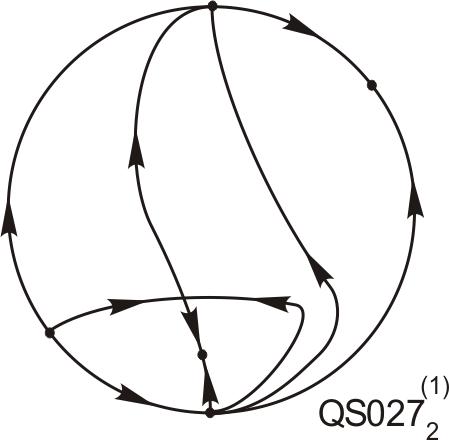

Phase Portrait
Topological Invariants
| TCSP | Fin Sep | Inf Sep |
|---|---|---|
| \(27\) | \(42\) | \(3120\) |
Example
The quadratic differential system
\[\begin{cases} \dot{x} = -e+x^{2}+2 \, h \, x \, y+(n-1-2 \, h) \, y^{2} \\ \dot{y} = -e \, c+y+c \, x^{2}+(2+2 \, h-2 \, c-n) \, x \, y+(c-2-2 \, h+2 \, n) \, y^{2} \end{cases}\]
with parameters: \(h = -5, \quad c = \frac{11}{10}, \quad n = 10, \quad e = -0.001\)
has the following phase portrait done with P4. If you want, you may download the P4 file here. Since the image is not clear enough, we have added a ZOOM of it.
The phase portrait appears in the following papers
- With name \(U^1_{B4}\) in {J. C. Artés, J. Llibre and A. C. Rezende}, Structurally unstable quadratic vector fields of codimension one, Birkhäuser/Springer, Cham, 2018, vi+267 pp.
- With name \(5S10\) in {J. C. Artés, R. D. S. Oliveira and A. C. Rezende}, Topological classification of quadratic polynomial differential systems with a finite semi-elemental triple saddle, Internat. J. Bifur. Chaos Appl. Sci. Engrg. { bf 26} (2016), no.~11, 1650188, 26 pp.; MR3566296
- With name \(Fig 1.7 g\) in {J. W. Reyn and R. E. Kooij}, Phase portraits of non-degenerate quadratic systems with finite multiplicity two, Differential Equations Dynam. Systems { bf 5} (1997), no.~3-4, 355--414; MR1660222Note (for name \(Fig 1.7 g\)): one wrong separatrix
- With name \(2S52\) in {J. C. Artés, A. C. Rezende and R. D. S. Oliveira}, The geometry of quadratic polynomial differential systems with a finite and an infinite saddle-node (C), emph{Internat. J. Bifur. Chaos Appl. Sci. Engrg.}, textbf{25}, no. 3 (2015), 1530009, 111 pp.
Bifurcations in codimension 0
- Bifurcation interface between the codimension 0 portrait \(QS23_{1}^{(0)}\) and \(QS25_{1}^{(0)}\).
